Deluge Nozzles

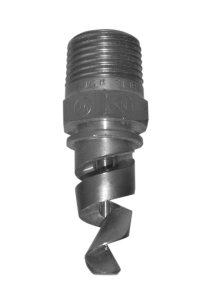

BETE N-Series

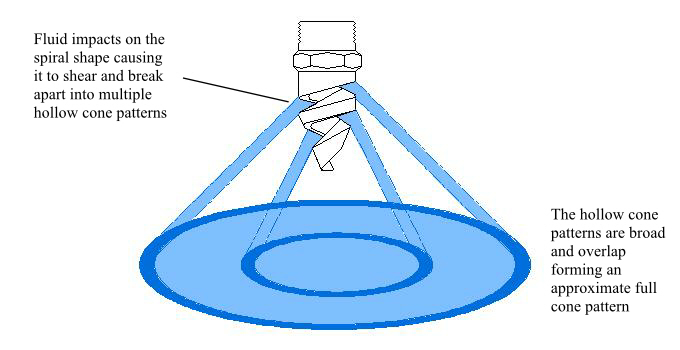

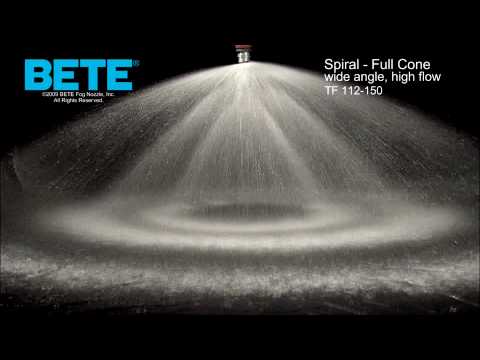

BETE N-Series fire protection deluge nozzles feature a simple design that delivers highly effective, highly efficient performance. Their unique spiral nozzles are specially engineered for fire and explosion suppression applications. Multiple concentric cone sprays (at 90° and 120° spray angles) maximize contact, and the exceptionally large spray area enhances evaporation and cooling.

The simple one-piece design of these deluge nozzles features no internal parts for a long working life with minimal maintenance requirements. Maximum flow rate is 534 gpm (1,720 Lpm); flow rates vary by model.

LEECYN COMPANY, LLC offers BETE fire protection deluge nozzles in numerous sizes to fit standard 1/2", 1”, and 1-1/2” pipe sizes. A range of exotic and alloy materials are available to combat highly corrosive seawater environments.

TYCO Type D3 PROTECTOSPRAY

TYCO Type D3 PROTECTOSPRAY nozzles are open (non-automatic) directional spray nozzles that provide effective coverage of exposed vertical, horizontal, curved, and irregularly-shaped surfaces. These external deflector-type nozzles discharge a uniformly filled cone of medium velocity water droplets, helping to prevent excessive heat absorption, reduce possible structural damage, and limit the spread of flames.

LEECYN COMPANY, LLC offers TYCO fire protection deluge nozzles in an array of sizes and discharge angle configurations. Available in natural-finish bronze, chrome-plated bronze, and lead-coated bronze and designed for 1/2" NPT connections.

Please see individual product listings for additional information.

Request a quote for deluge nozzles you need, or contact LEECYN COMPANY, LLC to learn more.
